We are a noteworthy Manufacturer and Supplier of a wide array of Alumina Bricks. We make available High Alumina Bricks and Low Alumina Bricks for our customers. Our Alumina Bricks are unmatched in quality as they are manufactured in complete conformity with industrial standards. Alumina Bricks, provided by us, are available in various specifications to meet different application requirements. Customers are eased with the wide availability of Alumina Bricks at affordable prices.
Buyers can contact us for procuring High Alumina Bricks. We offer High Alumina Bricks that are marked by superior quality, due to which they are widely demanded in the market. We make High Alumina Bricks available in numerous specifications at economical prices. Besides, we are a reputed Manufacturer and Supplier of High Alumina Bricks.
Quality | Chemical Analysis | Physical Properties | Thermal Properties | R.U.L Ta. OC Min. | ||||
Brand Name | AL2O3 Min % | Fe2O3 Max (%) | A.P. Max (%) | B.D. Avg (g/cc) | C.C.S. Min (kg/cm2) | P.C.E. Min Ort/oC | RUL Min (taoC) | PLC Max (%)/oC |
Patel 30 | 30 | 2 | 25 | 1.9 | 250 | 30/30 | 1300 | 1/1350 |
Patel 40 | 40 | 2.1 | 23 | 2.1 | 300 | 31 | 1400 | 0.5/1400 |
Patel 50 | 50 | 2.5 | 22 | 2.25 | 400 | 33 | 1420 | ± 1.0/1450 |
Patel 60 | 60 | 3.0 | 20 | 2.5 | 450 | 34 | 1450 | ± 1.5/1450 |
Patel 70 | 70 | 3.5 | 18 | 2.65 | 550 | 36 | 1470 | ± 1.5/1400 |
Patel 80 | 80 | 3.2 | 16 | 2.85 | 650 | 37 | 1550 | ± 1.5/1500 |
• Size Tolerance : ± 1.5% Or 2mm Whichever Is Greater.
• The Above Data are On Average Result Basis.

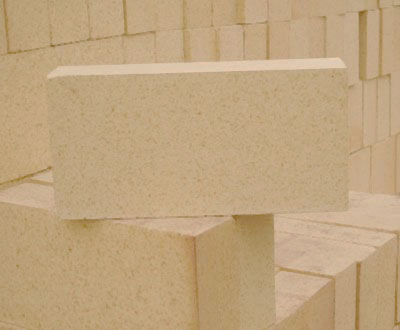

We are instrumental in offering Low Alumina Bricks to our customers. Our Low Alumina Bricks are high in quality and performance in their area of application. Customers can avail Low Alumina Bricks from us in different specifications at market leading prices. Further, we are a renowned Manufacturer and Supplier of Low Alumina Bricks.
Quality | Chemical Analysis | Physical Properties | Thermal Properties | R.U.L Ta. OC Min. | ||||
Brand Name | AL2O3 Min % | Fe2O3 Max (%) | A.P. Max (%) | B.D. Avg (g/cc) | C.C.S. Min (kg/cm2) | P.C.E. Min Ort/oC | RUL Min (taoC) | PLC Max (%)/oC |
Patel LF 40 - 20 | 40 | 2.0 | 22 | 2.20 | 350 | 32/33 1717/1743 | 1420 | 1.0/1400 |
Patel LF 45 - 15 | 45 | 1.5 | 19 | 2.25 | 400 | 33/34 1743/1763 | 1420 | 1.0/1450 |
Patel LF 50 - 20 | 50 | 2.0 | 21 | 2.35 | 425 | 34/1763 | 1440 | 1.0/1500 |
Patel LF 60 - 20 | 60 | 2.0 | 21 | 2.50 | 450 | 36/37 1804/1820 | 1450 | 1.5/1450 |
Patel LF 70 - 25 | 70 | 2.5 | 23 | 2.60 | 500 | 37/1820 | 1480 | 2.0/1500 |
• Size Tolerance : ± 1.5% Or 2mm Whichever Is Greater.
• The Above Data are On Average Result Basis.
We are a one end destination to avail Bottom Pouring Sets. Designed using the finest quality material, our Bottom Pouring Sets stand in complete conformity with the highest quality standards. We make Bottom Pouring Sets available in varied specifications to suit the varied demands of the customers. In addition, we are a major Manufacturer and Supplier of Bottom Pouring Sets.
• Premium quality
• Long service life
• Huge availability
• Competitive prices
Our expertise lies in making available a wide assortment of Cupola Bricks. The Cupola Bricks that we offer are made in strict adherence to industrial at our own infrastructural facility. Our Cupola Bricks are one of their kinds and widely used in multiple industries. Besides, we are a chief Manufacturer and Supplier of Cupola Bricks.
• Manufactured from quality material
• High in quality
• Precise dimensions
• Reasonably priced
To satisfy the variegated needs of customers, we make available Monolithic Castable. We fabricate Monolithic Castable as per the set industrial standards under the vigil of our supervisors. Our Monolithic Castable meets the highest quality standards and is available in various specifications. Further, we are a famed Manufacturer and Supplier of Monolithic Castable.
Brand Name | AL2O3 Min % | Fe2O3 Max (%) | Grading Mm. | Service Tem | Setine | Application |
Pc-30M | 30 | 2.0 | 0-1 | 1300oC | Ceramic | Mortar For Laying IS-6 Bricks |
Pc-40M | 40 | 2.2 | 0-1 | 1350oC | Ceramic | Mortar For Laying IS-8 Bricks |
Pc-50M | 50 | 2.5 | 0-1 | 1400oC | Do | Mortar For Laying 55%AL2O3 Bricks |
Pc-60M | 60 | 3.0 | 0-1 | 1450oC | Do | Mortar For Laying 60%AL2O3 Bricks |
Pc-70M | 70 | 3.5 | 0-1 | 1500oC | Do | Mortar For Laying 70%AL2O3 Bricks |
Pc Air Setting Martar | 27 | 1.0 | 0-05 | 1250oC | Chemically | For Laying HHD Bricks |
• The Above Data are On Average Result Basis.
We are a trusted Manufacturer and Supplier of Refractories Bricks. Refractories Bricks. The Refractories Bricks that we offer are superior in quality, and thus widely demanded in the market. We make Refractories Bricks available in various specifications to suit the diversified application requirements. We have priced Refractories Bricks reasonably.
Brand Name | AL2O3 % Miln | Fe2O3 % Max. | P.C.E. (OoC) Max. | B.D. (Gm/ccs) Min | A.P. %Min | C.C.S. (Kgf/Cm2) Min | R.U.L. (Ta'C) Min | P.L.C. % Max. | Application |
Patel-30 | 30 | 2.0 | 30 | 1.9 | 25 | 250 | 1300 | ±1.0 at 1350o C | Moderate Heat Duty Waste Heat Installation Stack & Flue Linings Annealing Furnaces And as Back Up Brick Linings In Boiler Furnaces Kiln Etc. |
Patel-HHD | 35-37 | 2.1 | 30 | 2 | 25 | 300 | 1350 | ±0.75 at 1350o C | Do |
Patel-40 | 40 | 2.2 | 31 | 2.1 | 23 | 300 | 1400 | ±0.5 at 1400o C | Do |
Patel-45 | 45 | 2.4 | 32 | 2.2 | 22 | 350 | 1400 | ±0.8 at 1400o C | Do |
Patel-50 | 50 | 2.5 | 33 | 2.25 To2.3 | 22 | 400 | 1420 | ±1.0 at 1450o C | Do |
Patel-60 | 60 | 3.0 | 34 | 2.5 | 20 | 450 | 1450 | ±1.5 at 1450o C | For Rotary Kiln Copper Plant Steel Ladle Electric ARC Farmes |
Patel-70 | 70 | 3.5 | 36 | 2.65 | 18 | 550 | 1470 | ±1.5 at 1500o C | Do |
Patel-60 L.F. | 60 | 2.0 | 34 | 2.4 | 20 | 450 | 1450 | ±1.5 at 1450o C | Do |
Patel-70 L.F. | 70 | 2.5 | 36 | 2.6 | 18 | 550 | 1470 | ±1.5 at 1500o C | Do |
Patel-80 | 80 | 3.2 | 37 | 2.85 | 16 | 650 | 1550 | ±1.5 at 1550o C | Do |
• Size Tolerance : ± 1.5% Or 2mm Whichever Is Greater.
• The Above Data are On Average Result Basis.
